Button-Fix Type 2 Compact – Technical Info

Connects panels at 90° or to a frame like the original Type 2, but with a shallower install depth so the Button fits the edge of an aperture in an 18mm panel – ideal for service access windows. Two clip options: push-on or drop-down.

Typical uses
  • Service access windows
  • Boxing-in and access panels
  • Kitchen plinths
MaterialGlass-filled nylon (Button & drop-down Fix), Acetal (push-on Fix)
Connects90° to a carcass or frame
EngagementPush & click or slide & click
MountingSurface-mounted
Min. panel thickness10mm
Guide load (wall, 4 drop-down fixes)120kg max
Made inUnited Kingdom

Guide loads assume screws and substrate are properly matched. Specifications from Button-Fix.

Not sure which type you need? Read our Button-Fix guide →
How Button-Fix Works

Delivery Information · Returns & Refunds

Check dimensions, compatibility and the selected pack before adding to your basket.

Button-Fix • Type 2 Compact

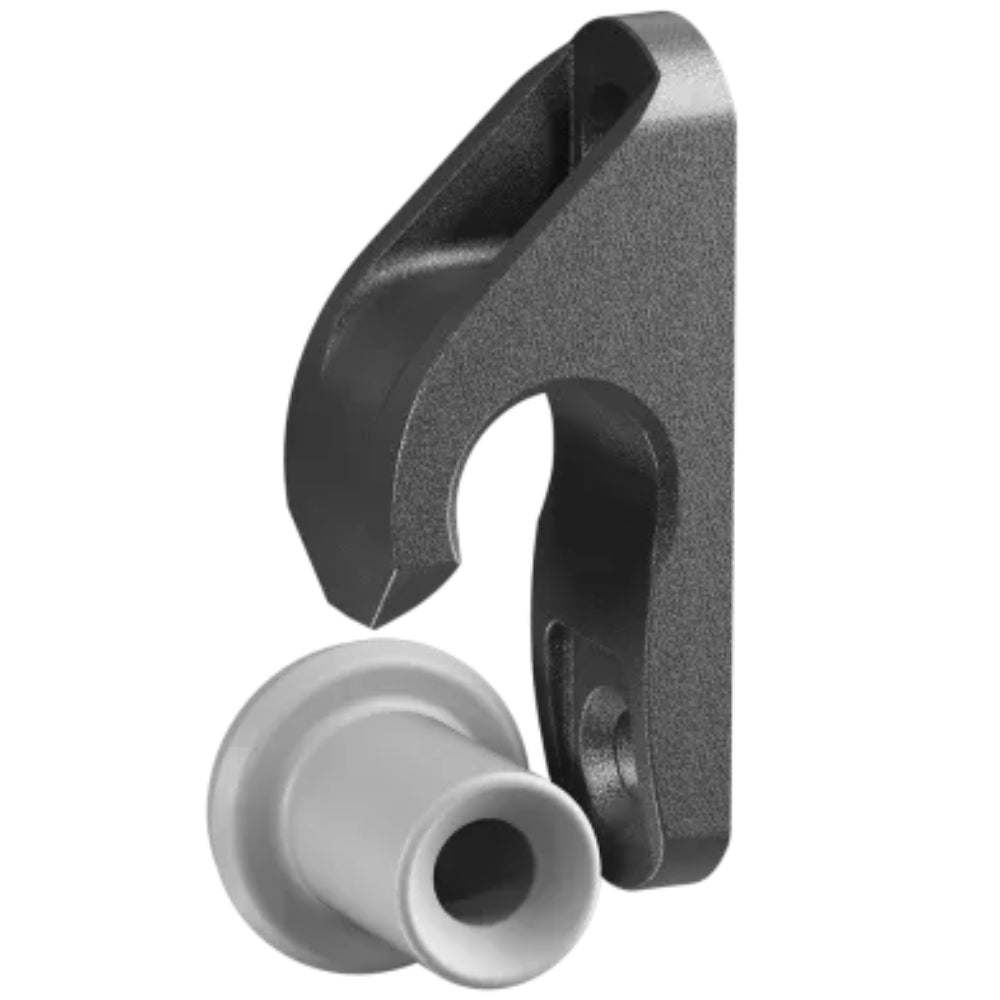

Button-Fix Type 2 Compact Drop-Down Fix
Secure concealed 90° panel fastener with controlled drop-down removal for service access.
Drop-down releaseWall: 120kg per 4 fixesFor 18mm panelsPacks of 1 – 1,000

The Button-Fix Type 2 Compact Drop-Down Fix is a concealed fastener for panels joined at 90° or fixed panel to frame, where extra security is needed but access must still be possible. The panel locks in place and drops down in a controlled way when it needs to come off. With its compact installation depth it can be fitted at the edge of an aperture in 18mm panels, making it ideal for washroom IPS, boxing-in and service access panels.

Why Fitters Choose It

Extra Security

The drop-down design holds panels firmly while still allowing access when needed.

Compact Depth

Smaller than the standard Type 2, so it fits at the edge of an aperture in 18mm board.

Any Orientation

Suitable for vertical, horizontal and angled panels.

High Strength

Fix and button are moulded from 30% glass-filled nylon PA6.

Technical Specifications

Button-Fix Type 2 Compact Drop-Down Fix
Brand Button-Fix
Fixing type Concealed drop-down panel fastener
Connection Panel to panel at 90° or panel to frame
Panel thickness Fits the edge of an aperture in 18mm panels
Material (fix & button) 30% glass-filled nylon PA6
Guide load: wall panel 4 fixes: 120kg max.
Guide load: ceiling panel 4 fixes: 20kg max.
Installation aid Button-Fix Type 2 Compact Marker Tool
Typical uses Service access panels, washroom IPS, panels below vanity units and basins, concealing plumbing and services, wheelchair-accessible washstands
Pack Sizes 1, 2, 4, 6, 10, 12, 20, 30, 50, 100, 250, 500, 1000

Pack Sizes & Marker Tool Bundles

Available in packs of 1 to 1000 fixes, on their own or as a money-saving kit with matching Marker Tools – just choose your Kit and Pack Size above. Larger packs bring the price per fix down, ideal for full fit-outs.

Frequently Asked Questions

How Does The Drop-Down Release Work?

The panel locks in place, and when it needs to come off it drops down in a controlled way, so you keep access while getting more security than a push-on fixing.

How Much Weight Will It Hold?

Guide loads are 120kg maximum for a wall panel on 4 fixes and 20kg maximum for a ceiling panel on 4 fixes.

What Panel Thickness Does It Suit?

It fits at the edge of an aperture in 18mm panels and works on vertical, horizontal and angled panels.

What Is It Made From?

The fix and button are moulded from 30% glass-filled nylon PA6 for high strength.
