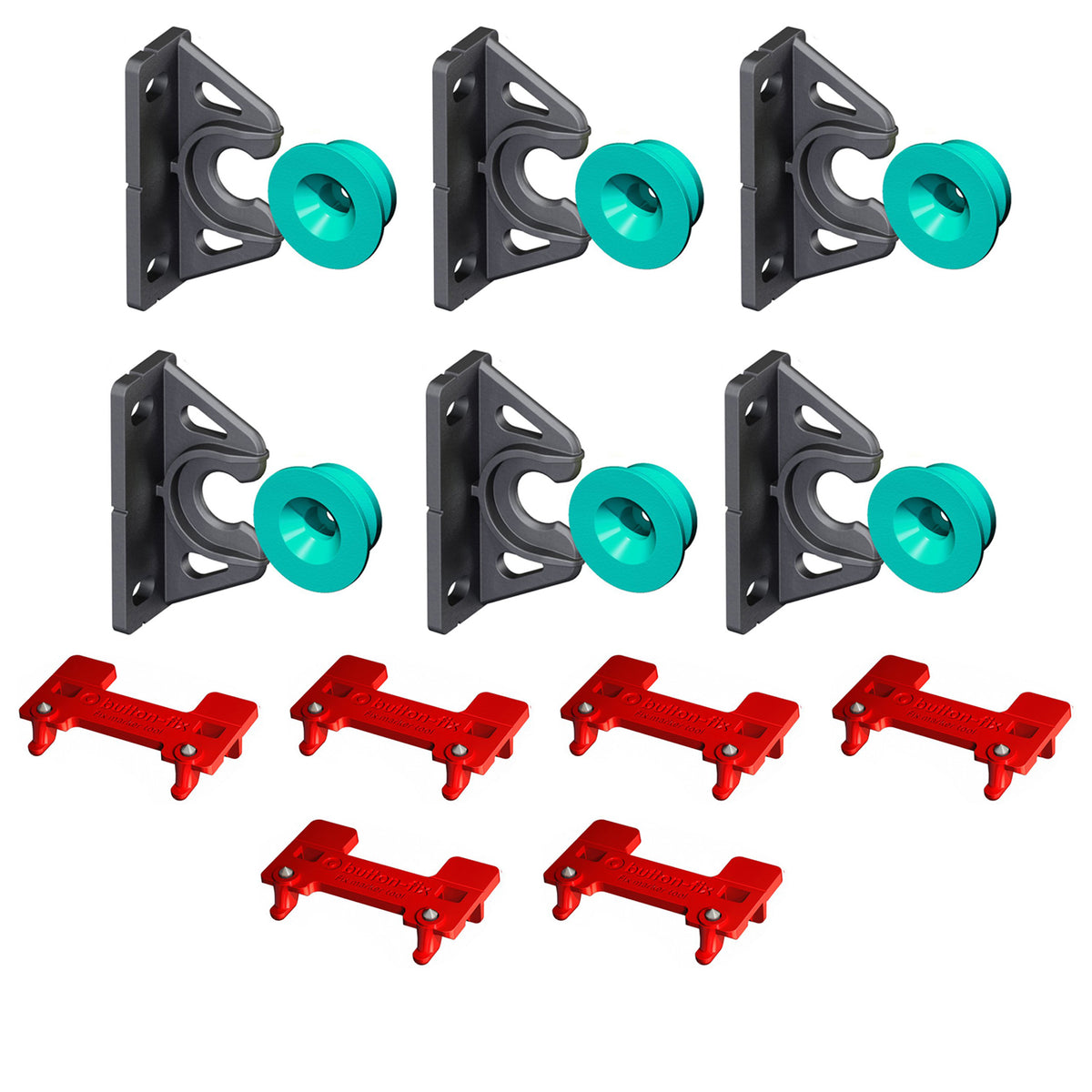

Button-Fix Type 2 Fix & Button Concealed 90 Degree Panel Fixing (Bundle 6+6)
Button-Fix Type 2 Fix & Button Concealed 90 Degree Panel Fixing (Bundle 6+6)
Discount applied automatically at checkout. Mix & match any items.
- Fast UK dispatch from our London warehouse
- VAT invoice supplied with every order
A 90° connection with straight push-on engagement – the recommended choice for access panels and boxing-in services. Quick to install with the Fix Marker, no tape measure needed.
- Plumbing and electrical access panels
- Bath panels and radiator covers
- Quick-assembly furniture
- Kitchen unit plinths
- Removable panels with no side clearance
| Connects | 90° (to a carcass or frame) |
|---|---|
| Engagement | Push & click |
| Mounting | Surface-mounted |
| Guide load (wall, 4 fixes) | 50kg max – never use on ceiling panels |
| Made in | United Kingdom |
Guide loads assume screws and substrate are properly matched. Specifications from Button-Fix.
Delivery Information · Returns & Refunds
Check dimensions, compatibility and the selected pack before adding to your basket.
Product Details & Specifications
The Button-Fix Type 2 is a secure, secret fixing system for connecting panels of any thickness at a 90° angle. Attach the Button to one panel and the Type 2 Fix to the other, then bring the panels together until the Button-Fix clicks. Versatile, securely lockable and fitter friendly, it is ideal for cabinets, displays and shopfitting where ease of fit is the priority.
| Button-Fix Type 2 Fix & Button | |
|---|---|
| Fixing type | Concealed 90° panel connector (Fix & Button) |
| Panel orientation | Panels of any thickness joined at 90° |
| Fix dimensions | 50mm wide x 25mm high, 6–18mm deep (varies across the Fix) |
| Fix screws | 2 x 4.5mm pan head wood screws |
| Button dimensions | 18mm diameter x 8mm deep |
| Button screw | 1 x 5.0mm countersunk wood screw |
