Floating shelf brackets – also called concealed shelf supports – are steel pins that fix into the wall and slide into holes drilled in the back of the shelf, so nothing shows below. Fitted properly they give a clean, bracket-free look in kitchens, alcoves and bathrooms. This guide explains how to choose the right support for your wall and how to fit floating shelf brackets step by step.
1. Choose The Right Concealed Shelf Support
| Support | Best For | Key Details |
|---|---|---|

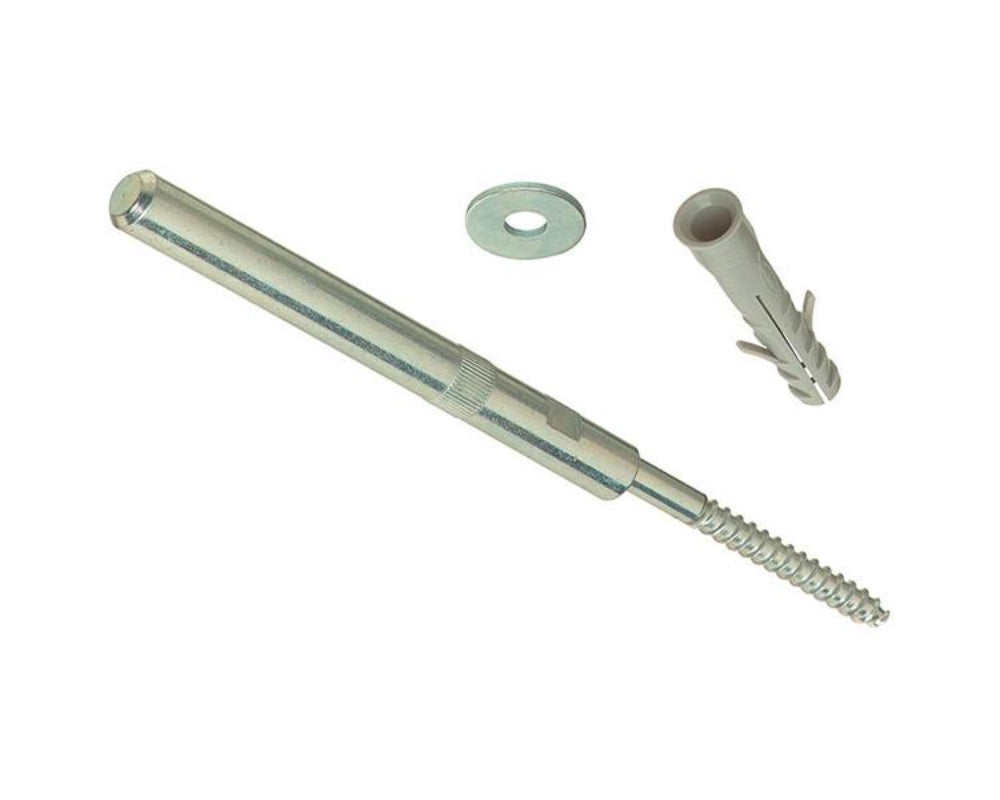

| Häfele Concealed Floating Shelf Support 120mm | Brick and block walls, or woodwork | Hardened steel pin; drill Ø10mm wall hole; supplied with SR 10 60mm nylon plug and washer; vertical adjustment with SW 10 spanner |
| Häfele Height And Tilt Adjustable Support | Shelves that need levelling after fitting | Galvanised steel; screw fixed to the wall; Ø12mm shelf hole; height via slots, tilt via the pin |
| Häfele Screw-Fix Side Adjustable Support | Wooden shelves 22mm and thicker | Steel; concealed screw fixing; Ø12mm shelf hole; left or right adjustment |
For shelves inside cabinets or bookcases rather than on a wall, use plug-in shelf supports for 5mm holes instead.
2. Check Your Wall And Shelf
- Wall: concealed supports need a solid fixing – brick, block or timber studs. Plasterboard on its own is not strong enough for a floating shelf.
- Services: use a cable and pipe detector before drilling, and keep clear of the zones above and below sockets and switches.
- Shelf: use a solid timber or dense board shelf thick enough to leave wood all round the pin. Hollow or very thin shelves will split.
3. Mark Out And Drill The Wall
- Decide the shelf height and draw a level line on the wall.
- Mark the support positions along the line: at least two per shelf, evenly spaced and kept in from the shelf ends.
- For the 120mm masonry support, drill a Ø10mm hole at each mark, clean out the dust and push in the supplied SR 10 nylon plug. For the screw-fixed supports, use fixings suited to your wall – in masonry, a quality plug such as fischer DUOPOWER with the right screw.
- Screw in or fix the supports, checking each one is square to the wall and level with the others.
4. Drill The Shelf
Hold the shelf against the supports (or transfer the centres with a tape) and mark the back edge. Drill each hole straight and square to the back edge, to the diameter and depth given on the product page – a pillar drill or drilling guide helps. Holes that wander are the main cause of shelves that tilt or will not slide on.
5. Slide On, Level And Fix
Slide the shelf over the pins until it sits tight to the wall. Check it with a level and adjust: the 120mm support adjusts vertically with an SW 10 open-ended spanner, and the height and tilt adjustable support can be fine-tuned with its slots and pin. If you want the shelf locked in place, a small bead of adhesive in the holes or a discreet screw from underneath into the pin area stops it lifting off.
Tips For A Perfect Floating Shelf
- Load the shelf evenly and keep heavy items near the wall.
- In alcoves, measure each end separately – walls are rarely square.
- For panelling and boxing-in around the shelf, see our Button-Fix comparison guide.
Shop the full range of concealed shelf supports and shelving and shelf supports, plus fischer wall plugs and fixings for the wall.
Frequently Asked Questions
How Many Concealed Shelf Supports Do I Need?
Use at least two supports per shelf. Longer or more heavily loaded shelves need more, spaced evenly along the length and kept clear of the shelf ends.
Can I Fit Floating Shelf Brackets To Plasterboard?
Not into plasterboard alone. Concealed pins put a high leverage load on the wall, so fix them into masonry (brick or block) or into solid timber such as studs or noggins behind the plasterboard.
What Size Hole Do I Drill For A Concealed Shelf Support?
It depends on the support. The Häfele 120mm floating shelf support needs a 10mm hole in the wall for its SR 10 nylon plug; the adjustable and screw-fix supports use a 12mm hole in the shelf. Always check the product page and drawing.
How Thick Should A Floating Shelf Be?
Thick enough to leave solid wood all round the pin. The Häfele screw-fix concealed support needs a wooden shelf of at least 22mm; for long or heavily loaded shelves choose a thicker, solid shelf.
How Do I Stop A Floating Shelf Sagging At The Front?
Drill the shelf holes square to the back edge and use supports with adjustment. The Häfele 120mm support adjusts vertically with an SW 10 spanner and the height and tilt adjustable support lets you fine-tune the angle after fitting.
